Observability

What is Observability and Why Does it Matter?

Observability answers the question: "What is my swarm actually doing right now?"

A running swarm is a distributed system - multiple nodes communicating over a P2P layer. Without observability you are flying blind: when something goes wrong (a cell stalls, a message loop spikes latency, memory climbs) there is no way to diagnose it from the outside.

Swarm exposes three complementary signals:

Signal	What it tells you	Where it lives
Logs	Timestamped text events from every node	Loki / myrmic telemetry logs
Traces	Distributed call trees showing how work flows through cells	Tempo / myrmic telemetry traces
Metrics	Numerical counters and gauges (memory, message counts, …)	Prometheus / myrmic telemetry metrics

Each signal can be routed to one or both destinations, depending on how Myrmic is built and configured:

• Internal DB - requires Myrmic compiled with the telemetry feature (on by default). Queryable with the myrmic telemetry CLI without any extra infrastructure.
• OpenTelemetry (OTel) export - requires Myrmic compiled with --features open-telemetry and otel_endpoint set in the runtime config. Pushes data to any OTel-compatible collector. The demo docker-compose stack routes this to Grafana/Loki/Tempo/Prometheus, but any other OTel stack works too.

Neither destination is guaranteed to be active by default - you get the CLI alone, the Grafana export alone, both, or neither, depending on your build and configuration.

---

Prerequisites

• Completed the First Cell Quickstart (TBD).
• Rust toolchain & Cargo - required to build Myrmic from source. Install via rustup if not already set up.
• Docker & Docker Compose (optional - only needed for the Grafana visualization stack).
• The swarm repository checked out locally - the Myrmic source live here.

---

Step 1 - Build Myrmic with OpenTelemetry Support

The OpenTelemetry exporter is opt-in at compile time. Run:

cd <path/to/your/repo/root>
cargo build --bin myrmic --features open-telemetry

Without this flag, the runtime will not push data to any external collector. Internal DB recording is still available, but only if the telemetry feature is compiled in - it is a default feature, so it is included unless you explicitly opt out.

You might want to install the Myrmic binary to your system which simplifies the next steps as the myrmic command is used directly in this tutorial:

cd <path/to/your/repo/root>
cargo install --path swarm/myrmic-cli/ --features open-telemetry

---

Step 2 - Start the Grafana Stack (Optional)

For local testing, a ready-made Docker Compose file is provided under docker/otel-stack/. It starts:

Service	Purpose	Default address
OpenTelemetry Collector	Receives OTel data from Myrmic	localhost:4317 (gRPC), localhost:4318 (HTTP)
Grafana Tempo	Stores and queries distributed traces	internal
Grafana Loki	Stores and queries log streams	internal
Prometheus	Stores and queries metrics	internal
Grafana	Visualization UI for all of the above	http://localhost:3000

Install Docker (Ubuntu/Debian)

Install the Docker engine and the Compose plugin (v2):

sudo apt install docker.io docker-compose-v2

Verify both are installed and working:

docker --version           # e.g. Docker version 24.0.x
docker compose version     # e.g. Docker Compose version v2.x.x

Note: The Compose command is docker compose (with a space, v2 plugin). The older standalone docker-compose (with a hyphen, v1) may not support all features in the provided config.

For other platforms, follow the official Docker installation guides.

Optional: Rootless Mode

By default Docker requires root privileges. Running it in rootless mode improves security by not exposing the Docker daemon as root:

sudo apt install uidmap
curl -fsSL https://get.docker.com/rootless | sh

After the script completes, follow the printed instructions to add the rootless socket to your environment. Commands like docker compose up will then work without sudo.

See the rootless Docker docs for more.

Start the Stack

cd <path/to/your/repo/root>
cd docker/otel-stack
docker compose up -d

The -d flag detaches the stack so it runs in the background. Omit it to see the stack's own log output inline.

Grafana is then accessible at http://localhost:3000 (no login required in the default dev config).

Stop the Stack

docker compose down          # stop containers, keep recorded data
docker compose down -v       # stop containers AND delete all recorded data (clean slate)

---

Step 3 - Configure the Runtime

By default Myrmic logs to stdout only. To enable OTel export, add a telemetry section to your runtime configuration file (YAML):

myrmic:
  telemetry:
    otel_endpoint: "http://localhost:4317"   # OTel collector gRPC endpoint
    logs:
      filter: "info"                         # Log filter (see below)

Full Configuration Reference

myrmic:
  telemetry:
    # Push logs, metrics and traces to this OTel collector endpoint (gRPC).
    # Remove this key entirely to disable OTel export.
    otel_endpoint: "http://localhost:4317"

    logs:
      # Controls the format of log lines printed to the swarm process's stdout.
      # Has no effect on OpenTelemetry export.
      # Options:
      #   FULL    - timestamp + level + target + fields (default)
      #   COMPACT - same as FULL but without source location
      #   PRETTY  - human-friendly multi-line output, good for development
      #   JSON    - machine-readable JSON, good for log aggregators
      format: "PRETTY"

      # Filter which log records are emitted.
      # Syntax: <target>=<level> or just <level>
      # Examples:
      #   "info"                     - info and above from all targets
      #   "debug"                    - everything debug and above
      #   "swarm=debug,warn"         - debug for swarm crates, warn for everything else
      #   "debug,h2=warn,zenoh=off"  - debug overall, suppress noisy libraries
      # If omitted, the RUST_LOG environment variable is used as a fallback.
      filter: "swarm=info,warn"

Tip: The otel_endpoint field enables export for all three signals (logs, metrics, traces) at once. There is no per-signal toggle in the YAML config.

Example: Minimal Config (CLI Only, No Grafana)

myrmic:
  telemetry:
    logs:
      filter: "info"

Example: Full Config With Grafana

myrmic:
  telemetry:
    otel_endpoint: "http://localhost:4317"
    logs:
      filter: "swarm=debug,warn"

---

Step 4 - Start the Runtime

myrmic runtime start path/to/your/config.yml

Once the runtime is running, it begins collecting telemetry. You can now query it with the CLI or inspect it in Grafana.

---

Step 5 - Generate Some Activity

Deploying any application will immediately produce log lines. To see traces you need to trigger actual cell activity - a deployed cell handling a command or an event produces a trace.

If you have the hello-room app from the quickstart, it is enough:

# Deploy the application (produces log lines on startup)
myrmic deploy dist

# Send a few events to produce traces and update metrics
myrmic event "temperature-measurement"
myrmic event "temperature-measurement"

# Call a command - this also produces a trace
myrmic send room get_temperature

After these steps you should have logs, traces, and metrics to inspect.

---

Step 6 - Inspect Telemetry

Using the CLI

The myrmic telemetry subcommand queries the internal DB directly - no Grafana required.

View Logs

myrmic telemetry logs

Shows all stored log entries sorted by time, colour-coded by severity. Each entry includes a timestamp, severity level, and message. When a log entry belongs to a trace, the trace ID is printed inline.

# Filter to only logs from a specific distributed trace
myrmic telemetry logs --trace-id <uuid>

Debugging: DEBUG/TRACE records are hidden by default. myrmic telemetry logs reuses the CLI's own -v verbosity flag to decide which stored severities to print - not a separate query filter. ERROR, WARN, and INFO records always show, but DEBUG and TRACE records are suppressed unless you ask for them, even though they're already sitting in the DB (as long as the runtime's logs.filter let them through when they were recorded - see Step 3):

# Also show DEBUG-level records
myrmic telemetry logs -v

# Show everything, including TRACE-level records
myrmic telemetry logs -vv

This only affects myrmic telemetry logs. myrmic telemetry traces always dumps every stored span regardless of verbosity - trace data isn't leveled the way logs are.

View Traces

myrmic telemetry traces

Outputs all stored trace spans in the Trace Event Format (also known as the Chrome trace format). The output is JSON you can pipe to a file and open in a browser:

# Save and open in Perfetto (free, browser-based trace viewer)
myrmic telemetry traces > trace.json
# Open https://ui.perfetto.dev/ and drag-drop trace.json

# Or filter to a single trace
myrmic telemetry traces --trace-id <uuid>

View Metrics

myrmic telemetry metrics

Prints the latest snapshot of all metrics: counters, gauges, and byte-based metrics (displayed as human-readable sizes like 1.23 MiB). Each metric is shown with its name, value, and all associated attributes (e.g. node ID, cell type).

Change the Log Filter at Runtime

You can change what log levels are collected without restarting any node. The new filter is broadcast to all connected nodes instantly:

# Crank up verbosity to debug a problem
myrmic telemetry set-filter "swarm=debug,warn"

# Back to normal
myrmic telemetry set-filter "swarm=info,warn"

# Silence noisy libraries but keep debug for your own crate
myrmic telemetry set-filter "debug,h2=warn,zenoh=off"

Filter syntax follows the tracing crate's EnvFilter format.

Manage DB Retention

By default, telemetry data accumulates in the internal DB indefinitely. Use retention to bound storage:

# Keep only the last 15 minutes of data
myrmic telemetry set-db-retention "15min"

# Keep the last 2 hours
myrmic telemetry set-db-retention "2h"

# Keep 1 day and 30 minutes
myrmic telemetry set-db-retention "1day 30min"

# Disable retention - data is never purged (default)
myrmic telemetry no-db-retention

Retention changes are applied to all connected nodes immediately.

Live Debug Stream

The commands above all inspect data that's already been recorded. myrmic telemetry debug is different: it stays running and streams activity as it happens, until you press Ctrl-C or a --timeout elapses.

myrmic telemetry debug

It shows two kinds of items, printed in timestamp order as they occur:

• COMMAND - a command sent to a specific cell (i.e. a mailbox command), including its receiver SRI, trace ID (if any), and payload.
• EVENT - a published event, including its name, trace ID (if any), and payload.

Payloads are printed as JSON if they parse as JSON, otherwise as a string, otherwise as raw hex bytes - whichever is most readable.

If the swarm you're pointed at has DB-backed telemetry available (the default - see the signal table at the top of this chapter), matching log records are interleaved right alongside the command/event that triggered them, in timestamp order. Unlike myrmic telemetry logs, this interleaved log output is not gated by -v/-vv - every stored severity, including DEBUG and TRACE, is always shown here. This is what sets debug apart from logs/traces/metrics: instead of separate views you have to mentally line up by trace ID, you get one merged stream showing the command/event alongside every log line it caused, in the order they actually happened:

[2026-07-22T10:15:03.120Z] COMMAND=update receiver_sri=asset.object.0, trace_id=030a7dc5-8454-43a5-81c2-6f3e7a885edd, payload="xxxxxxxx..."
[2026-07-22T10:15:03.121Z] DEBUG TIER-1-BENCH-0-CALL-0 sri=asset.object.0
[2026-07-22T10:15:03.130Z] EVENT=central_update payload={"zone_id":0}, trace_id=030a7dc5-8454-43a5-81c2-6f3e7a885edd
[2026-07-22T10:15:03.131Z] DEBUG TIER-3-BENCH-0-CALL-0 sri=bridge.central

The COMMAND/EVENT lines come from debug's own item formatting; the DEBUG ... lines in between are log records emitted while handling them, rendered the same way as myrmic telemetry logs ([time] LEVEL message) but without a repeated trace ID, since it's already shown on the item above.

# Only stream activity addressed to one cell, stop automatically after 30s
myrmic telemetry debug --id asset.object.0 --timeout 30s

# Machine-readable output, e.g. to pipe into jq
myrmic telemetry debug --json | jq .

# Temporarily change cell log level
myrmic telemetry debug --level DEBUG | jq .

Note: --id (SRI or SRN) filters COMMAND items to the given receiver and filters logs to that cell's attribute, but it suppresses EVENT items entirely - events aren't naturally tied to a single receiver, so there's nothing meaningful to filter them by.

This is usually the fastest way to answer "what is actually happening in my swarm right now" while reproducing an issue interactively, rather than reproducing it first and then digging through logs/traces afterwards.

---

Using Grafana

If you have the Grafana stack running, open http://localhost:3000. The main tool for ad-hoc inspection is the Explore view, accessible from the left sidebar (compass icon). In Explore you pick a data source from the dropdown at the top - Loki for logs, Tempo for traces, Prometheus for metrics - and then build queries interactively. See the Grafana Explore documentation for a general introduction.

Checking Logs in Grafana

Logs are stored in Loki and queried using LogQL.

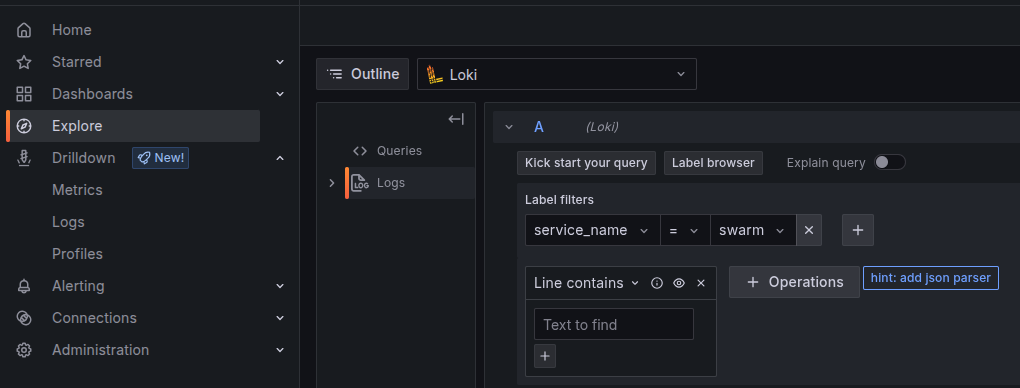

1. Open Explore and select Loki from the data source dropdown at the top of the page.



2. In the query builder that appears, click + Add label filter and set service_name = swarm. This narrows results to swarm nodes. You can add further filters - for example severity = error to show only errors. When ready, click Run Query in the top-right corner.

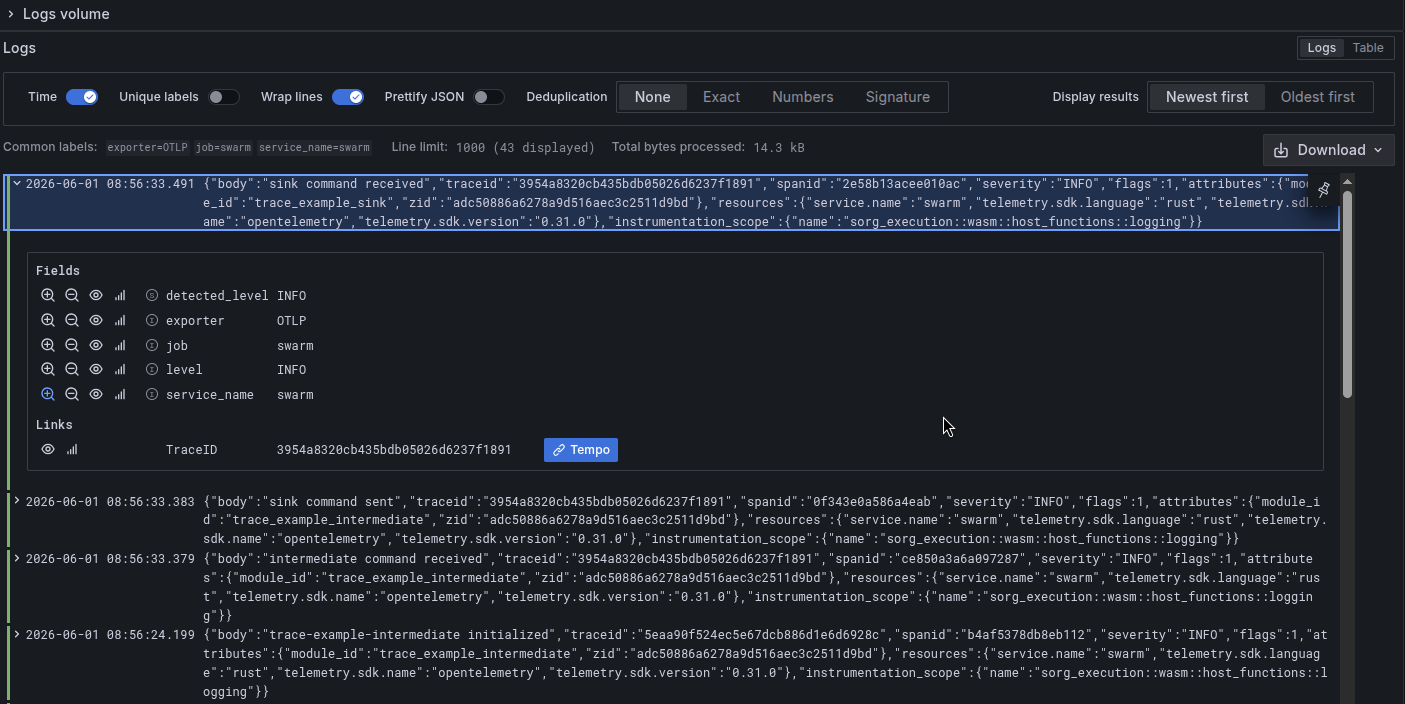

   Log lines are shown newest-first in the results panel below the query builder. Each line shows the timestamp, log level badge, and message. You can expand any entry to see all attached key-value attributes.

3. Any log entry that belongs to a distributed trace will show a Tempo button on the right side of the row. Clicking it opens the full trace directly - this is the fastest way to go from a log message to the trace that produced it.

Tip: If you already know a trace ID (e.g. from myrmic telemetry logs), paste it into the LogQL query as {service_name="swarm"} | trace_id = "<id>" to see only log lines from that trace.

Checking Traces in Grafana

Traces are stored in Grafana Tempo and queried using TraceQL.

Traces can be reached two ways:

• From a log entry: click the Tempo button next to any log line that has a trace ID (see above).

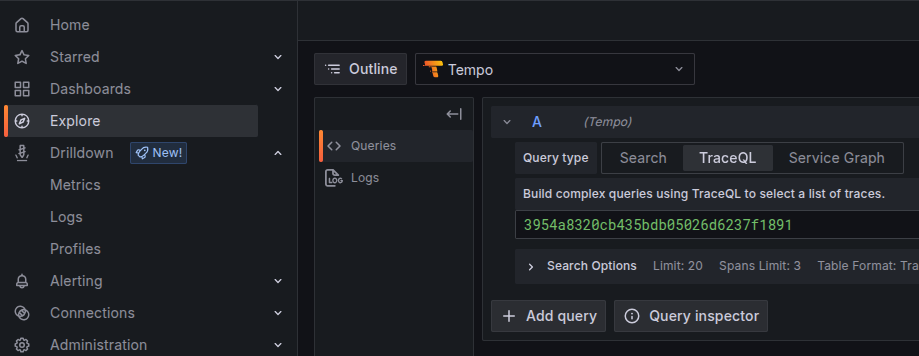

• Directly: open Explore, select Tempo from the data source dropdown, then either search by trace ID or use the Search tab to filter by service name, span name, duration, or tags.

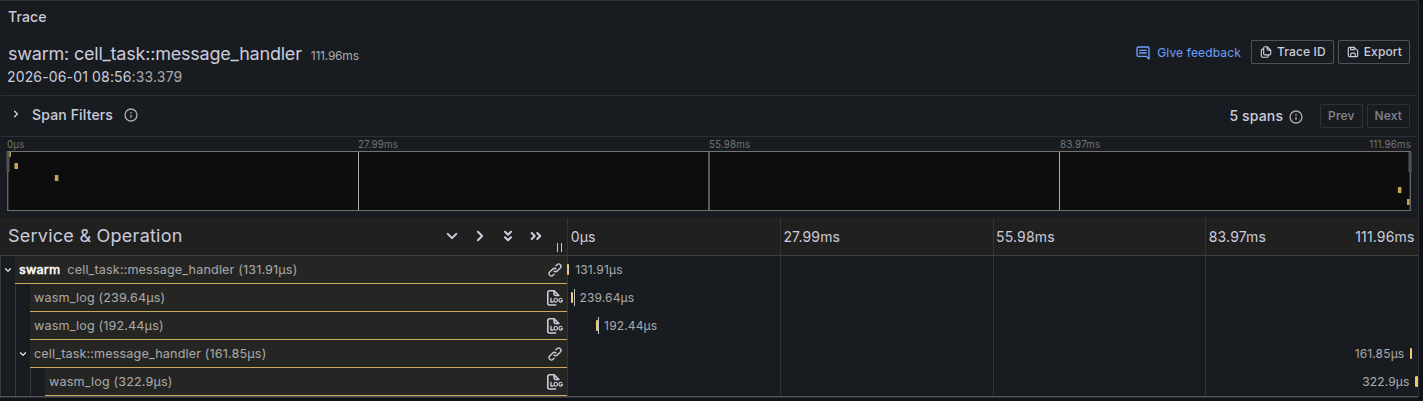

The trace view renders a timeline of spans. Each row is one span - a unit of work inside a single node. In swarm, spans typically appear sequentially: a parent span finishes before the spans it triggered appear, reflecting the asynchronous, message-driven nature of the system rather than a synchronous call stack. The horizontal position and width of each bar show when a span started and how long it took, making it easy to see the order of operations and spot latency between steps. Clicking a span expands a detail panel showing all its attributes.

Checking Metrics in Grafana

Metrics are stored in Prometheus and queried with PromQL. See the Grafana Prometheus data source docs for Grafana-specific query options.

Two ways to explore metrics:

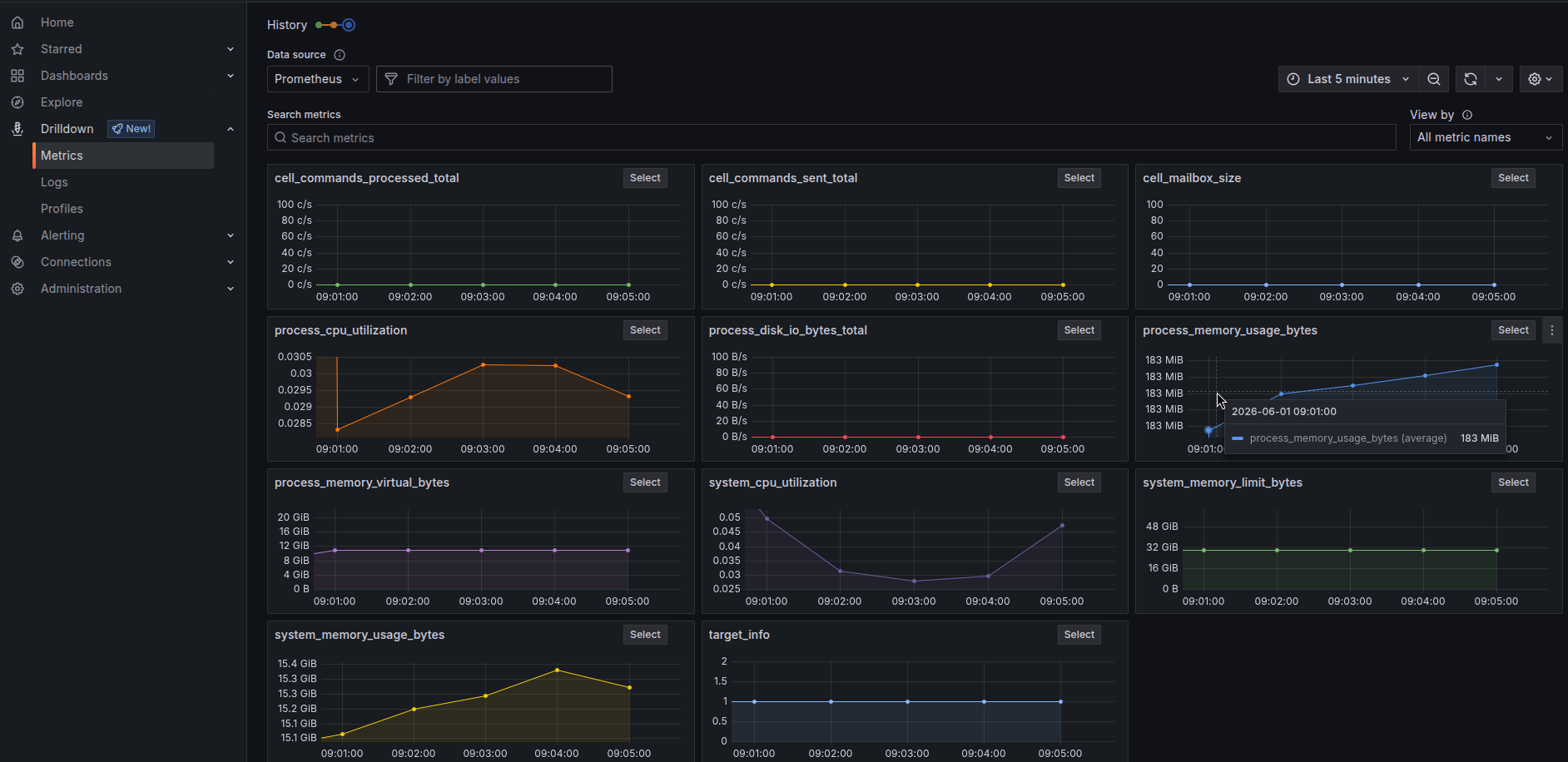

Metrics Drilldown (easiest for exploration): open the Drilldown app from the left sidebar. It lists all metric names reported by the swarm, grouped by prefix. Click any metric to see its current value, a time-series graph, and a breakdown by label. No PromQL knowledge required.

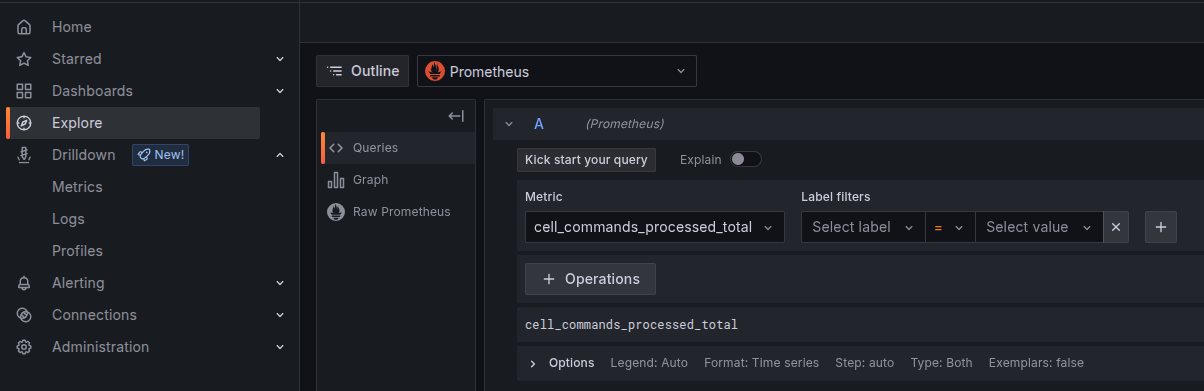

Explore view (for precise queries): open Explore and select Prometheus as the data source. Type a metric name in the query field - Grafana will autocomplete from the known metric list. From here you can apply PromQL functions such as rate() for per-second rates.

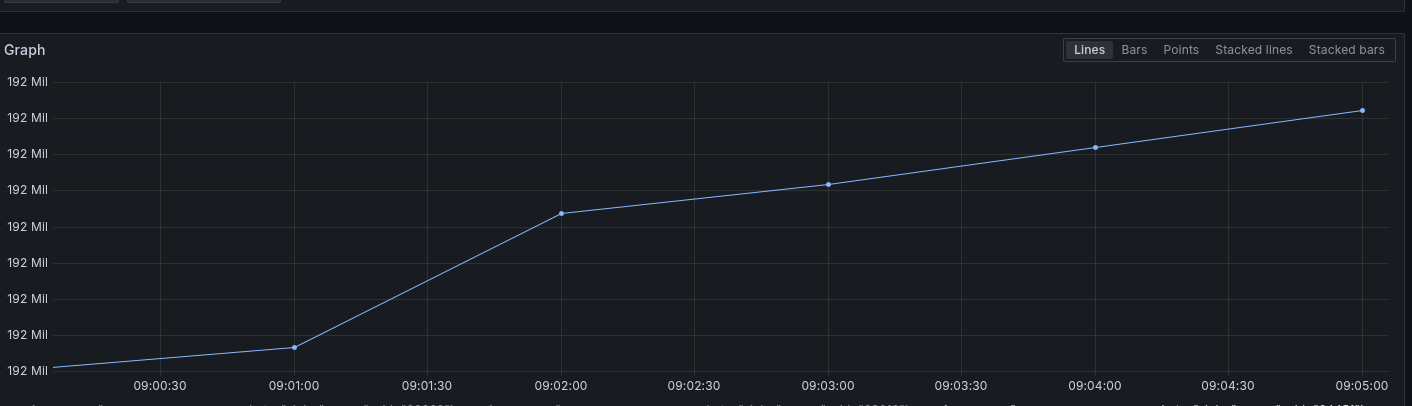

Results appear as a time-series graph and a table of raw data points below. Use the time range picker in the top-right corner to zoom in on a specific incident window.

---

Quick-Start Checklist

Use this to get up and running in one go:

# 1. Build Myrmic with OTel support
cargo build --bin myrmic --features open-telemetry

# 2. Start the Grafana stack
cd docker/otel-stack && docker compose up -d && cd -

# 3. Create a minimal runtime config
cat > my-runtime.yml <<EOF
myrmic:
  telemetry:
    otel_endpoint: "http://localhost:4317"
    logs:
      filter: "swarm=info,warn"
EOF

# 4. Start the runtime
myrmic runtime start my-runtime.yml

# 5. In another terminal - deploy an app and generate some activity
myrmic deploy dist
myrmic event "temperature-measurement"
myrmic event "temperature-measurement"
myrmic send room get_temperature

# 6. Inspect telemetry
myrmic telemetry logs
myrmic telemetry metrics
myrmic telemetry traces

# 7. Open Grafana (Linux: xdg-open, macOS: open)
xdg-open http://localhost:3000

---

Troubleshooting

myrmic telemetry logs shows nothing : The runtime must be running. Check that it started without errors.

No data in Grafana : Check that otel_endpoint is set in the runtime config and that Myrmic was compiled with --features open-telemetry. The binary silently skips OTel export if the feature is not compiled in.

Too much noise in logs : Use myrmic telemetry set-filter "<target>=info,warn" at runtime to suppress verbose output without restarting.

A DEBUG or TRACE log I expect isn't showing up in myrmic telemetry logs : Two independent filters are in play. First, the runtime's logs.filter config (or myrmic telemetry set-filter) controls what's recorded into the DB at all - if it's set to "info", DEBUG/TRACE records are never stored in the first place. Second, even once a record is stored, myrmic telemetry logs hides DEBUG/TRACE severities by default - pass -v (show DEBUG) or -vv (show TRACE) to the CLI command itself, e.g. myrmic telemetry logs -vv --trace-id <uuid>.

Grafana shows stale / old data only : If you restarted the runtime without cleaning volumes, old data may still be present. Run docker compose down -v in docker/otel-stack/ to wipe everything and start fresh.

OTel collector connection refused : Confirm the Docker stack is up (docker compose ps in docker/otel-stack/) and that port 4317 is not blocked by a firewall.
